      4532frntshot4

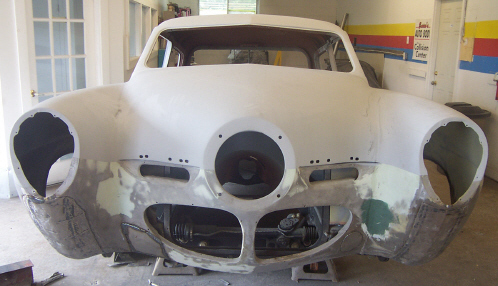

      1950 Studebaker Retro-Rod Project

      « Previous image  · Slide Show · Next image »


      Photo Details
      1950bulletnose




      CHR Member

      Registered: April 2004
      Location: Barss Corner
      Posts: 64
      users gallery
      A narragated & photo documented build up from the ground up of my 1950 Studebaker Chopped, Blown, Tilted, Shaved, AirRide Retro-Rod.
      http://www.angelfire.com/super/1950bulletnose
      · Date: · Views: 19,890
      · Filesize: 113.9kb · Dimensions: 498 x 286 ·
      Additional Info
      Quick Rate: Poor Excellent
      Keywords: studebaker streetrod chopped resto-rod retro-rod bulletnose
      Linked Thumbnail:
      Linked Image:

  1.    8:58pm
    1. Weeg
      CHR Member

      Registered: March 2002
      Location: Littleton
      Posts: 122

      Lookin' good. I've always like the 50 bullets also. Last one I did was a 48 Starlight Cpe. with a 50 front clip. I didn't do any top choppin' on that one. The rear glass comes around way to far on the Starlight to get into that hassle.
      This user is offline Click here to see this users profile Click here to Send this user a Private Message Visit Weeg's homepage! Find more posts by this user Visit this user's gallery

  1.    1:31am
    1. 1950bulletnose
      CHR Member

      Registered: April 2004
      Location: Barss Corner
      Posts: 64

      Thank you for your comment on my project. The roof chop took a few weeks of pondering and making sure that what I was about to do will turn out ok. Nowhere could I find where someone had done it before. As far as I was concerned this was a first.
      Chopping the roof of the curved rear tempered glass Studebaker sedan was a real dilema, as the glass could not be cut to fit a smaller opening. Check out the proceedure on my project site. First, the rear window frame of the sedan has to be removed from the roof. Second, the roof can now be removed. Third, the roof pillars can be cut and the roof can be put back on, (note roof has moved forward 3 inches). Fourth, the side window frames of the sedan can now be removed and the C Pillar trimmed, the side window frames moved back 3". Fifth, excess sheet metal at the top of rear window can be trimmed for repositioning the rear window frame back in it's hole. Sixth, fill in rear deck opening between trunk lid and rear window as a result of roof moving forward. And that's all there is to it. Sounds simply and it was, but very nerve racking.
      http://www.angelfire.com/super/1950bulletnose
