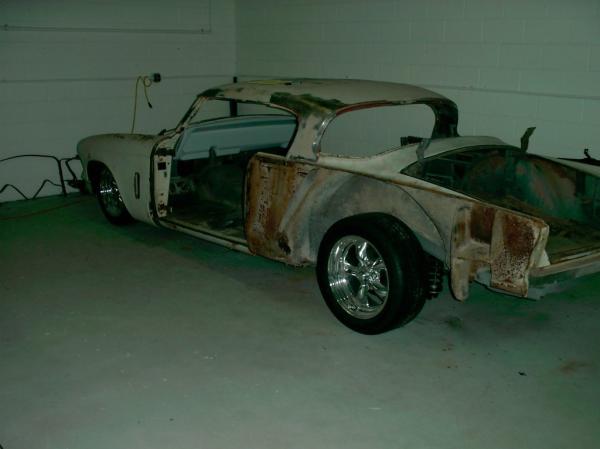

53 Studebaker Starliner - Club Hot Rod Photo Gallery

Welcome to Club Hot Rod! The premier site for everything to do with Hot Rod, Customs, Low Riders, Rat Rods, and more.

» Members from all over the US and the world!
» Help from all over the world for your questions
» Build logs for you and all members
» Blogs
» Image Gallery
» Many thousands of members and hundreds of thousands of posts!

YES! I want to register an account for free right now! p.s.: For registered members this ad will NOT show

Home · Search · Register

12:24am

Rating: 8

Larry M

Senior Club Hot Rod Member

Registered: April 2001
Location: Shelton
Posts: 4,614

Lookin' good Dean. Hows it coming along??

------------------------------
Every Day I Wake Up Above Ground Is a Good Day!!

Click here to Send this user a Private Message

9:09pm

Weeg

CHR Member

Registered: March 2002
Location: Littleton
Posts: 122

Larry, it's coming alone, but slowly at times. Right now I'm working out the power steering pump location. I have the engine set back so far and down into the chassis, I am really cramped for space to hang the power steering pump. The only option I have is to mount it backwards and run it off the back side of the surpentine belt system. I'm in the process of frabricating the mount now.

I'm also still looking for the perfect windshield to mount in the car. With the amount of chop that is on it, I want as much vision area as I can get. So, I'm looking for a windshield that is wider by about 2 1/2" than stock. It appears a 99 Dodge Ram windshield is a perfect match at the top arc, but is a bit flat compared to the bottom of the windshield arc. This will work OK to recess the wipers. I will cut in a new L-channel to mount the windshield flush with the body, and dress the edges of the glass after I get it cut. It will be bonded in with some of the newer bonding materials. There will be no rubber gaskets or trim, just a dressed glass edge. Will do the same for the rear, but will have to use Lexan as I can't cut the original Tempered rear glass.

Then, it's off to cutting down the sideglass stainless steel frames. Glass for these will not be such a pain as side glass is all flat.

Chassis is complete except for a test mounting of the sway bar before I tear it all down again.

Dean

1:40pm

1950bulletnose

CHR Member

Registered: April 2004
Location: Barss Corner
Posts: 64

Dean,
Always good to see another Stude project. '53 / '54 Loweys always a favorite.
Check out my '50 Bulletnose Retro-Rod Project
http://www.angelfire.com/super/1950bulletnose
Darrell
