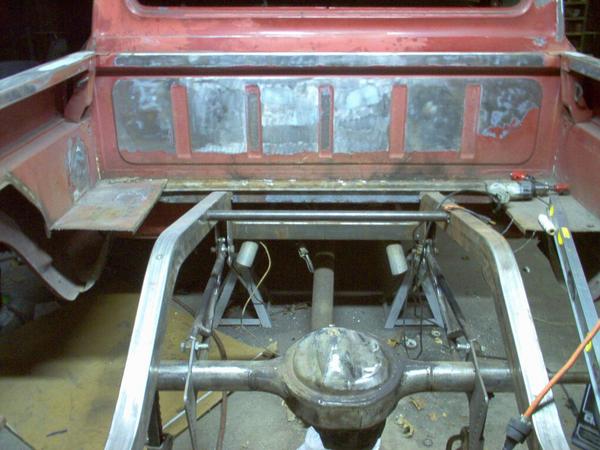

      new rear
      new rear

      Click on image to view larger image

      « Previous image  · Slide Show · Next image »


      Photo Details
      DaveMax


      CHR Member

      Registered: October 2005
      Location: Yates City
      Posts: 44
      users gallery
      I put in a new frame instead of using original, Better control of suspension and ride hieght for me.
      · Date: · Views: 3,758
      · Filesize: 46.4kb, 216.7kb · Dimensions: 1660 x 1245 ·
      Additional Info
      Rating: ********** 10.00
      Quick Rate: Poor Excellent
      Keywords: F100 frame
      Linked Thumbnail:
      Linked Medium:
      Medium Image:

  1.    8:03pm Rating: 10
    1. FMXhellraiser
      CHR Member

      Registered: March 2004
      Location: Charlotte, NC
      Posts: 2,835

      What rear end did you use and rear frame clip?

      ------------------------------
      www.streamlineautocare.com

      If you wan't something done right, then you have to do it yourself!
      This user is offline Click here to see this users profile Click here to Send this user a Private Message Visit FMXhellraiser's homepage! Find more posts by this user Visit this user's gallery

  1.    8:27pm
    1. DaveMax
      CHR Member

      Registered: October 2005
      Location: Yates City
      Posts: 44

      I used the stock rear end, i narrowed it myself. Used frame rails prebent from summit. I modified them to fit my needs. I have a bender and was going to use round tube, but went with the 2x3 to see if i liked them or not. As you can see the rear end is just there for reference. Actually had someone at work ask me if that drive shaft angle would work. i do like the 2x3 rails for most applications. I just had to lower the rails down. They are designed for cars application, so the rear section is high for truck floor. There is a setup out there just for trucks, but i wanted to try these out myself before i would put them on a customers car.

      Nice quality, same ones you get from Quarter max.
      Used a set of theres on friends truck.
      They are actually competition engineering if you look at the numbers.

      Just put a picture of buddies truck in member galley
